WorkshopShortening SUP paddles

Stephan Gölnitz

 · 09.04.2020

Workshop: Shortening SUP paddlesPhoto: Daniel Simon
Workshop: Shortening SUP paddles
Part 6: Think before you reach for the saw. Once you know the right length, you can get started with these tips.

The use of a saw needs to be carefully considered - "cutting on" later becomes problematic. However, the endeavour is not difficult and the tools and work steps required are actually quite simple.

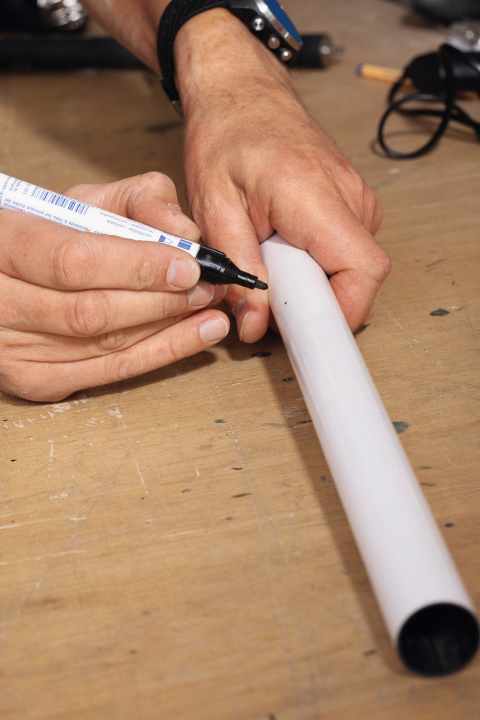

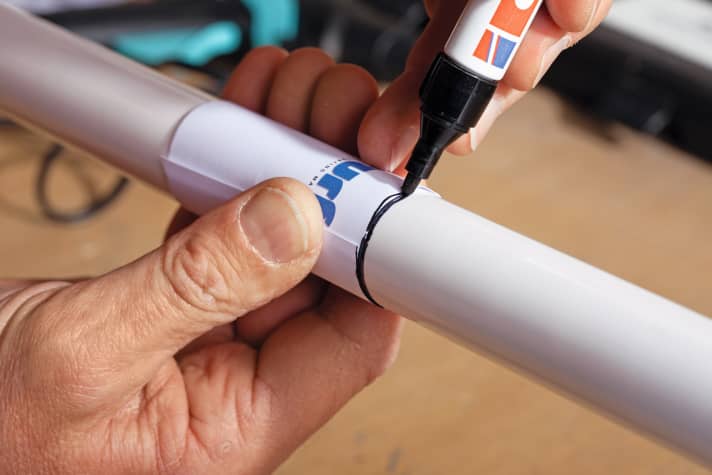

Here we shorten the SIC Maliko to test length. First mark the length with a small dot.Photo: Daniel SimonHere we shorten the SIC Maliko to test length. First mark the length with a small dot.A strip of paper that we wrap around the tube acts as a...Photo: Daniel SimonA strip of paper that we wrap around the tube acts as a......as a straight "ruler" along which we draw the sawing line.Photo: Daniel Simon...as a straight "ruler" along which we draw the sawing line.We stick transparent adhesive tape over the later sawing edge to prevent splintering.Photo: Daniel SimonWe stick transparent adhesive tape over the later sawing edge to prevent splintering.

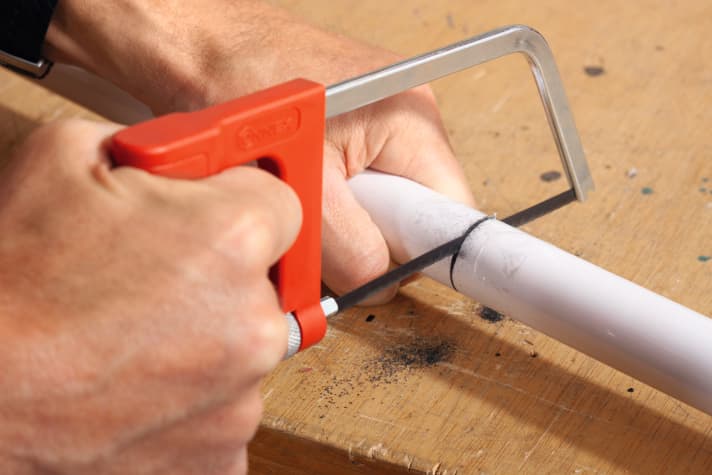

With a fine hacksaw, the carbon tube can be easily cut with a little DIY experience.Photo: Daniel SimonWith a fine hacksaw, the carbon tube can be easily cut with a little DIY experience.The pipe is then deburred using a flat piece of wood and 240-grit wet sandpaper.Photo: Daniel SimonThe pipe is then deburred using a flat piece of wood and 240-grit wet sandpaper.Also carefully on the inside without pulling carbon splinters into your fingers. If you like, go over it with 600 grit sandpaper.Also carefully on the inside without pulling carbon splinters into your fingers. If you like, go over it with 600 grit sandpaper.Now rinse the pipe with water and leave to dry. We only need to insert the Lever-Lock handle, but you could just as easily glue on a handle or clamp.Photo: Daniel SimonNow rinse the pipe with water and leave to dry. We only need to insert the Lever-Lock handle, but you could just as easily glue on a handle or clamp.You can read this article and the entire SUP 1/2019 issue in the SURF app (<a href="https://www.delius-klasing.de/digital" target="_blank" rel="noopener noreferrer nofollow">iTunes and Google Play</a>) - the print edition is available <a href="https://www.delius-klasing.de/sup-special-01-2019-sup-2019-01" target="_blank" rel="noopener noreferrer nofollow">here</a>.Photo: Stephan GölnitzYou can read this article and the entire SUP 1/2019 issue in the SURF app (iTunes and Google Play) - the print edition is available here.
