Trapezes are still not very common in wings - one of the reasons for this is the dangling trapeze ropes, which can interfere with manoeuvres. Inventor Paul Arztner wants to change this with his new "Artness" system. The principle: the trapeze rope lies close to the strut when it is not in use. When hooked in, it then extends to the preset length.

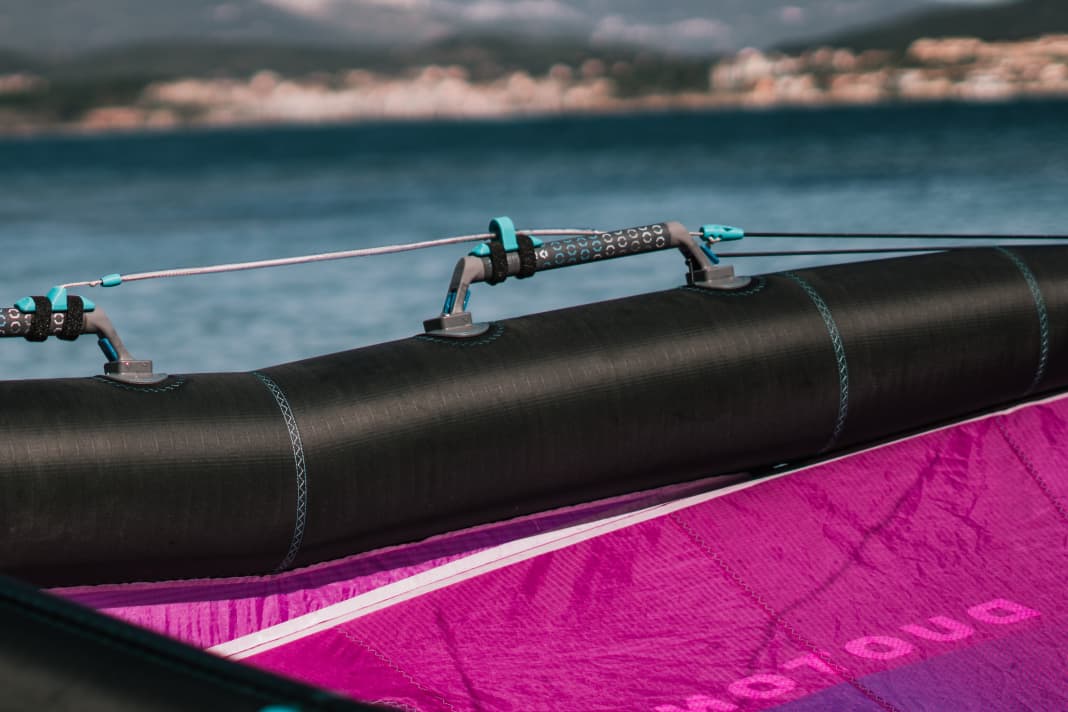

"Artness" fits all grip systems from soft handles to hard handles or mini booms through to full-length booms. Two plastic elements from the 3D printer are attached to the handles, as well as a deflector on the rear tip of the wing. While the rope is fixed at the front, it runs through an opening in the rear clamp.
A stopper block connects the actual trapeze rope with an elasticated rubber cable, which is stretched over the deflector. When the rider hooks in, the rope extends and the connecting block stops at the rear clamp. As soon as a manoeuvre is required, the system quickly returns to its original position. You can see all the details in the gallery above!
The lines are available in lengths between 22" (56 cm) and 34" (88 cm). According to the manufacturer, the system can withstand a pull of up to 200 kg. The price is 49.99 euros.
Further information at artzner3d.fr
