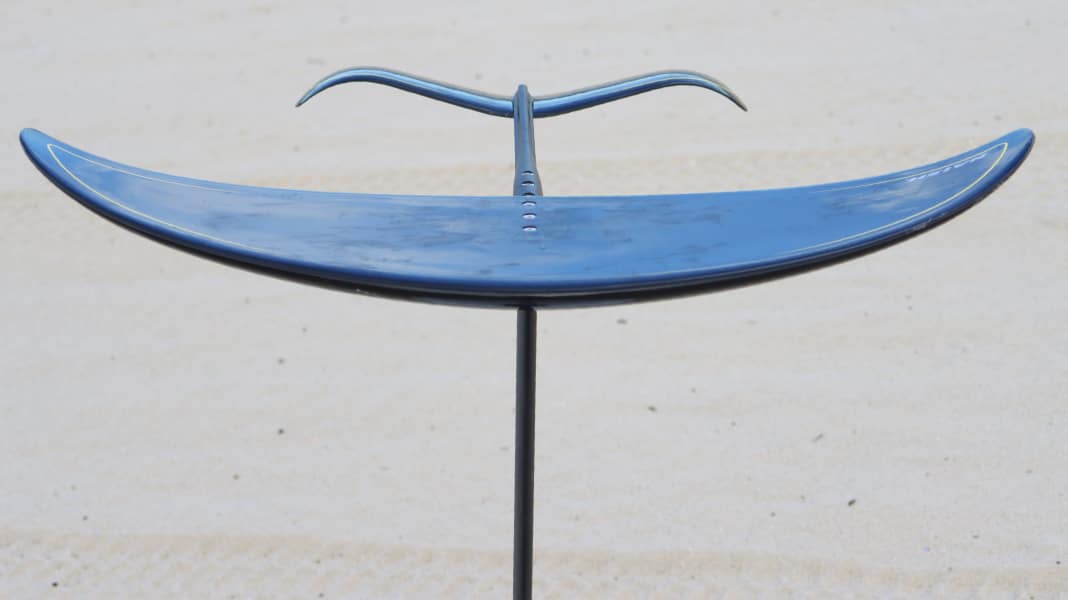

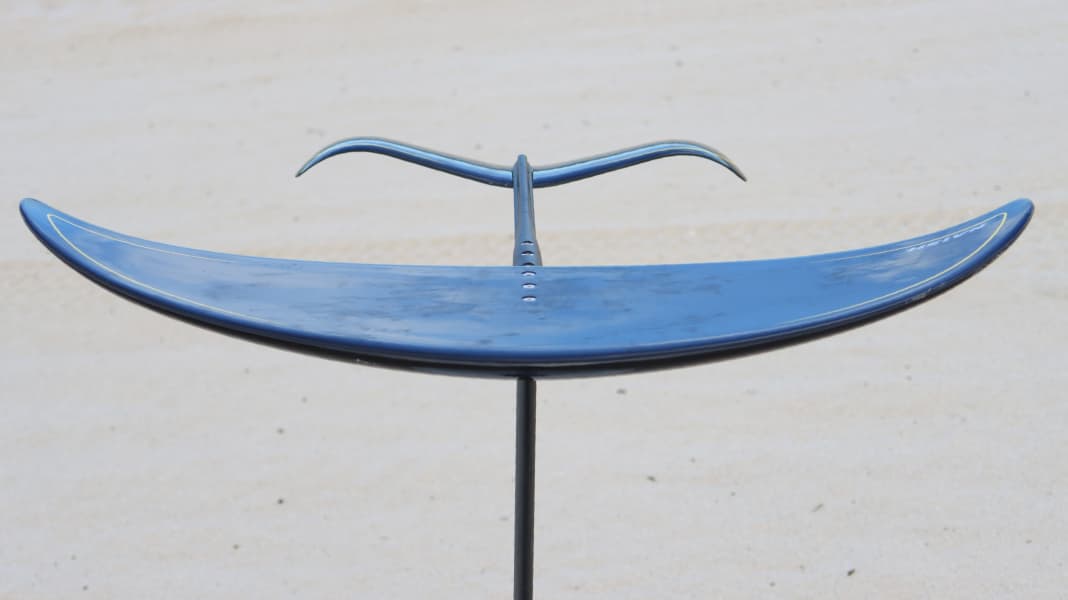

Anyone looking into foils for wingfoiling or windsurf foiling will quickly come across terms such as ‘high aspect’, ‘mid aspect’ or ‘low aspect’. This refers to the aspect ratio of a front wing — that is, the ratio of wingspan to wing area, or the vertical width of the wing. This has a major influence on how a foil feels on the water, so this figure gives an indication of its handling characteristics and target user group.
What is the aspect ratio of foils?
The aspect ratio describes how long and narrow, or how compact and wide, a foil wing is constructed.
- High aspect ratio = large wingspan, slender wing
- Low aspect ratio = shorter span, greater width
To put it simply:
- A High-aspect-ratio foil appears rather elongated and slender
- A Low-aspect-ratio foil looks more compact and often has a thicker profile
This figure is particularly important in wing surfing and windsurfing, as it describes the basic shape, which has a direct influence on Lift, Glide, Control, Ease of turning and the Scope of application has.
How is the aspect ratio calculated for foils?
The classic formula is:
Aspect ratio = (wingspan × wingspan) : area
The following applies:
- Wingspan = Width of the front wing from tip to tip
- Area = projected area of the front wing (usually indicated on the wing)
Sample calculation:
A front wing has:
- Wingspan: 90 cm
- Area: 1200 cm²
So the calculation is as follows:
(90 × 90) : 1200 = 6.75
The aspect ratio is therefore 6.75.
Important: Not every manufacturer calculates the aspect ratio in exactly the same way
In practice, there is one important caveat: aspect ratio is not always fully comparable. This is because manufacturers may use slightly different calculation methods, for example based on projected area, actual area or slightly different definitions of the span. This means that a ratio of 7.0 for Brand A may not feel exactly the same as a ratio of 7.0 for Brand B. The figure is therefore a good guide, but it is no substitute for looking at the actual outline and intended use of the foil.
Classification: Low, Mid, High and Super High Aspect
The boundaries are not clearly defined. The following classification may serve as a practical guide:
| Aspect Ratio | Value |
| Low Aspect | up to approx. 5.5 |
| Mid Aspect | approx. 5.5 to 7.5 |
| High Aspect | approx. 7.5 to 10 |
| Super High Aspect | from around 10 |
Aspect Ratio: How it affects a foil’s handling characteristics.
- Low-aspect-ratio foils They tend to have a fairly compact shape with a relatively wide width. They usually generate a lot of lift even at low speeds and feel responsive. They allow for an early take-off and are forgiving, but are slower and less efficient.
- Mid-aspect foils are now the Sweet Spot. They combine good lift with decent speed, whilst remaining manoeuvrable and easy to control. They offer a good balance and are versatile.
- High-aspect-ratio foils are significantly longer. They ride more efficiently, maintain speed better and are faster. They are particularly suitable for riders who want to get more performance out of their setup and are capable of handling more technically demanding foils. They are also often a good choice for downwind riding in swells
- Super-high-aspect-ratio foils are extremely elongated and designed for maximum hydrodynamic efficiency. Ideal for long flights on small swell waves. This category is performance-oriented and demanding during take-off and manoeuvres
